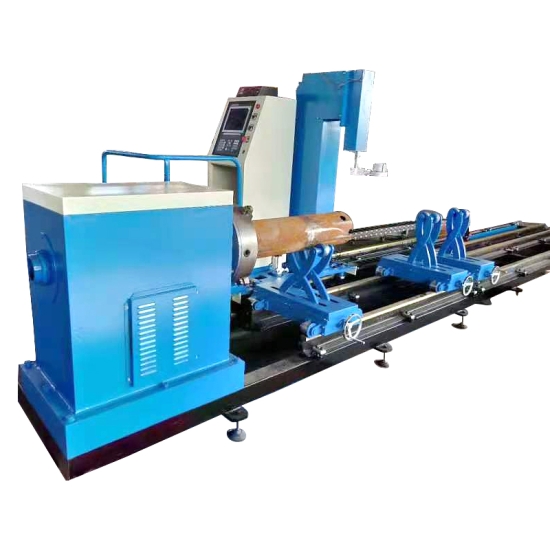

Intersecting Line CNC Plasma Cutting Machine
Intersecting Line CNC Plasma Cutting Machine
The intersecting line cnc plasma cutting machine is suitable for cutting cylindrical orthogonal, oblique, eccentric, and other inertial holes, and elliptical holes on various pipes, and can cut intersecting inertial lines. This machine is widely used in the production of metal structural parts, power equipment, boiler industry, petroleum, chemical and other industrial sectors.
Feature
1.Pipe diameter 100mm-600mm and length 6000mm, also support customize
2.Professional intersecting line cnc plasma cutting machine for pipe cutting. Input the pipe diameter, intersection angle and other parameters of the pipeline intersecting system, which can calculate the intersecting line of various intersecting forms between the main pipe and several branches, and complete the multi-axis linkage control to realize various complex intersecting line cutting.
3. Shanghai jiaoda FX430B controller system, Support 19 languages.
| No. | Items | Parameters |
| 1 | Controller system | Shanghai jiaoda FX430B |
| 2 | diameter of pipe | Ф100mm～Ф600mm) |
| 3 | Plasma cutting thickness | According to plasma power source |
| 4 | Effective cutting length | 6000mm support customized |
| 5 | Cutting speed | Plasma cutting speed according to plasma power source |
| 6 | pipe carrying weight | Max 2500KG |
| 7 | Un-load speed | 10～4000 mm/min |
| 8 | Cutting angle | Less than 45 degrees |
| 9 | Steel pipe transmission | Electric drive chuck rotates to run with longitudinal equipment |
| 10 | Cutting method | Plasma cutting |
| 11 | Lifting method | Plasma |
| 12 | Cutting function selection | Intersecting line cutting |
