LGK-120/200/300/400HD Inverter Air Plasma Cutting Machine

LGK-120/200/300/400HD Inverter Air Plasma Cutting Machine

  • Liên hệ
  • 1234

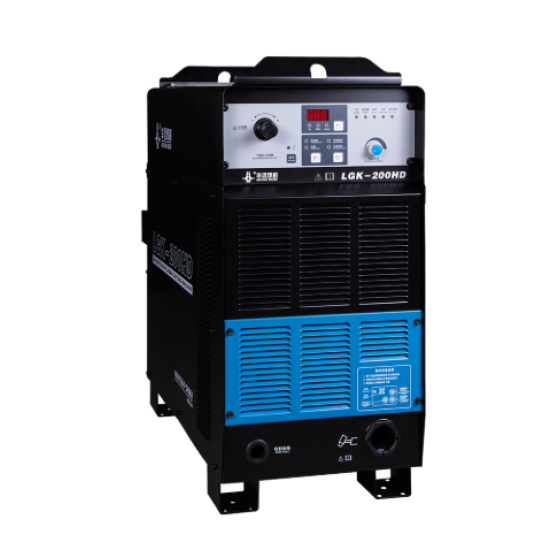

LGK-120/200/300/400HD Inverter Air Plasma Cutting Machine
This plasma cutting machine is mainly used for cutting various metal materials such as carbon steel, alloy steel, and non-ferrous metals. It is widely used in the installation of industrial power stations, boiler pressure vessels, metallurgy, petrochemical, aerospace, shipbuilding, engineering machinery, steel structure manufacturing and other industries that involve metal cutting.
Feature
Life monitoring of torch consumable parts
Gas pressure and coolant flow display, detection, alarm, control
Independent setting of advance air supply, delayed air cut time and current ramp-up time
Overheating, undervoltage automatic protection
Automatic display of fault code when abnormal
Use smart fan to reduce dust accumulation in the machine
LGK-120HD has the function of cutting mesh material, which is suitable for cutting various types of mesh workpieces
Item unit Model
LGK-120HD LGK-200HD LGK-300HD LGK-400HD
Input source  V/Hz 3 phase±15% 50/60
Rated input capacity KVA 21.2 46.5 70.4 92.3
Rated output current A 120 200 300 400
Rated output voltage V 128 160 200 200
Rated unloading voltage V 308 319 370 370
Rated loading cycle - 100%（40℃）
Efficiency - 92% 93%
Power factor - 0.78 0.75 0.92
Range of output current A 30-120 30-200 30-300 30-400
Qualified cutting capacity (carbon steel) mm 0.3-25 1-45 1-50 1-60
Cutting capacity (carbon steel) mm 45 65 80 90
Arc way - Non-touched
Plasma air - Air compressor
Air pressure Mpa 0.3-0.5 0.4-0.6
Cooling way of torch - Air cooling Air cooling/Water cooling
Cooling way of plasma - Air cooling
Insulation grade - Grade F
Shell protect grade - IP21S
Dimension (mm) mm 575*320*605 853*385*800 985*445*910 1015*445*910
Net weight (kg) Kg 46 86 129 148
