LGK-63/100/120/160/200 /300/400IGBT Inverter Type Air Plasma Cutter

LGK-63/100/120/160/200 /300/400IGBT Inverter Type Air Plasma Cutter

  • Liên hệ
  • 1302

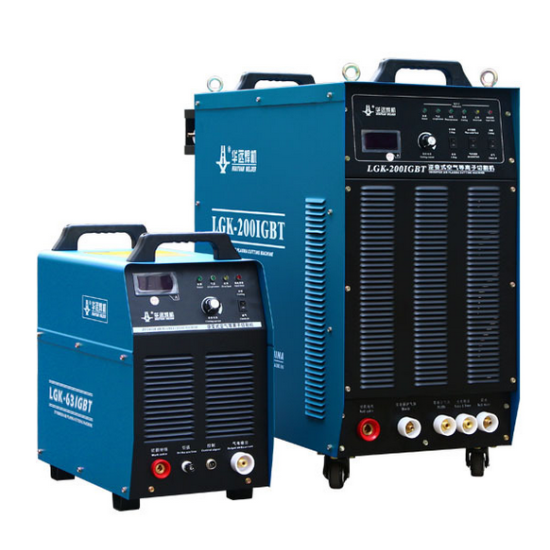

LGK-63/100/120/160/200/300/400IGBT Inverter Type Air Plasma Cutting Machine
Mainly used for manual and machine cutting of metal materials such as carbon steel, alloy steel, and non-ferrous metals. It is widely used in boiler chemical industry, pressure vessel production, industrial power station installation, metallurgical construction, chemical construction, aerospace industry, automobile manufacturing and maintenance, building decoration and other industries that involve metal cutting.
Feature
  • High load duration, suitable for heavy industry
  • Cutting current slow rise technology to reduce the consumption of torch accessories
  • Capable of adapting to wide grid voltage
  • Scientific dust-proof design, high reliability of the whole machine
  • Compact structure, small size, light weight, can be installed on CNC machine tools
  • The cutting air source uses cheap compressed air, and the cutting cost is low
  • Preset cutting current accurately, steplessly adjustable
  • With plasma gas pressure detection and indication function
  • With gas test function, easy to adjust the air pressure
  • With automatic protection function for overheating, overvoltage, undervoltage, and lack of phase
Item Model
LGK-63 LGK-100 LGK-120 LGK-160 LGK-200 LGK-300 LGK-400
Input source (V/Hz) 3-380±15% 50/60
Rated input capacity (KVA) 9.5 17.8 22.4 32.2 46.7 65.8 94.1
Rated input current (A) 14.5 27 34 49 71 100 143
Rated output current (A) 63 100 120 160 200 300 400
Rated output voltage (v) 106 120 128 144 160 200 200
Rated unloading voltage (v) 300 300 300 315 315 380 380
Rated loading cycle 60%(40℃) 100%(40℃)
Range of output current (A) 30-63 30-100 30-120 30-160 30-200 30-300 30-400
Ratio of arc pressure output signal 1:1/1:20/1:50/1:100 1:1/1:20/1:50/1:100
Qualified cutting capacity (carbon steel) (mm) 0.3-12 0.3-22 0.3-25 0.3-35 0.3-45 0.3-50 0.3-60
Cutting capacity (carbon steel) (mm) 25 40 45 55 65 80 90
Plasma air Air compressor
Air pressure (mpa) 0.3-0.5 0.4-0.6 0.45-0.6
Cooling method of torch Air cooling Air cooling/Water cooling
Cooling method of source Air cooling
Insulation grade Grade F
Shell protect grade IP21S
Dimension (mm) 585*280*485 675*320*605 800*380*650 800*380*810 890*430*900 890*430*900 930*430*900
Net weight (kg) 26 45 46 65 82 124 144
