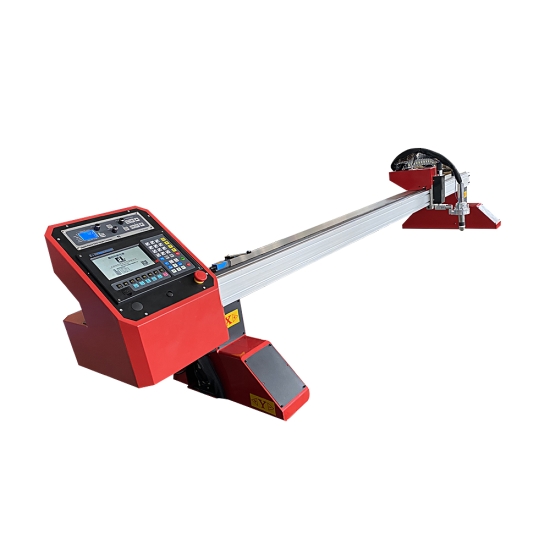

Mini Gantry CNC Plasma and Flame Cutting Machine
| Item | Descriptions | Specification |
|---|---|---|
| Machine Body | Gantry Width (mm) | 3000 or 4000 (Can be widened) |
| Rail length (mm) | 5000 or 10000 | |
| Effective Cutting Area(mm) | 2200x3500 or 2200*8500 or 3200*3500 or 3200*8500 | |
| Drive motor | Dual-drive stepper motor | |
| Max traveling speed(mm/min) | 12000mm/min | |
| Max.Cutting speed (mm/min) | 6000mm/min | |
| Flame Torch | Flame Cutting Torch Number | 1 (can increase) |
| Flame Cutting Thickness(mm) | 6-200mm | |
| Flame Torch Height Sensor | Torch Height sensor | |
| Flame Cutting Speed(mm/min) | 50-800mm/min | |
| Flame cutting Gas Pressure and Flow Request | Oxygen:0.5-0.8MPa Purity: 99.5%; Flow:1.0M3/h |
|
| Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa |
||
| Plasma Torch | Plasma Cutting Torch Number | 1 (can increase) |
| Plasma Torch Height Sensor | THC | |
| Plasma Torch Anti-Collision Holder | SMART CUT | |
| Main configuration | Controller | F2100B |
| THC | F1621 | |
| Motor and driver | Leadshine stepper motor and drivers |
