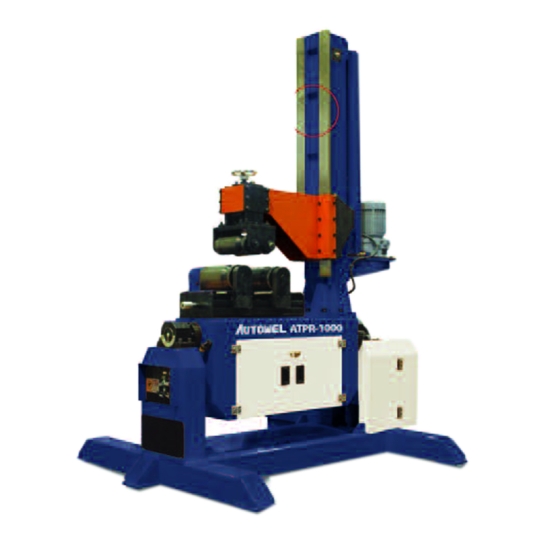

MODEL: ATPR-1000
1. Turning function: The pipe can be rotated forward and reversed in a fixed state by biting it on the roller.
Speed adjustable.
2. Fixing function: It is possible to fix pipes of various diameters by adjusting the distance between the vertically moving roller and the horizontal moving roller according to the size of the pipe.
3. By tilting the fixed pipe, continuous work with a stable posture is possible.
|
Specification for worm type pipe rotator |
|||
|
Model |
ATPR-600 |
ATPR-1000 |
|
|
Load pipe |
50~600A |
80~1000A |
|
|
Capacity |
2000KG |
3000KG |
|
|
Driving lower roller size |
Ø 160 |
Ø 180 |
|
|
Tilting speed |
0~1300mm/Min |
0~1000mm/Min |
|
|
Tilting angle |
(+/-) 45° |
||
|
Control system |
Remote and foot switch |
||
|
Safety device |
Tilting safety pin tilting |
||
|
Tilting worm reducer production |
Worm reducer shaft fitting (Bush type) |
||
|
Tilting roll bearing |
Assembling a bearing cover |
||
|
Power supply |
3P 380V 50Hz |
||
|
Material of roller |
Steel or urethane |
||
|
Horizontal pipe spool max |
2000kg 3000kg |
||
|
Tilting pipe spool max |
700kg 1500kg |
||
|
Motor |
Lifting |
1.5Kw |
2.2Kw |
|
Turning |
1.5Kw |
2.2Kw |
|
|
Tilting |
1.5Kw |
2.2Kw |
|
|
Measurement |
Length |
1690mm |
2280mm |
|
Height |
2210mm |
2730mm |
|
|
Width |
1145mm |
1660mm |
|
|
Weight |
1800Kg |
2500Kg |
|
- Upper : D 140 mm x L 250mm
- Lower : D 165mm x L 250mm
