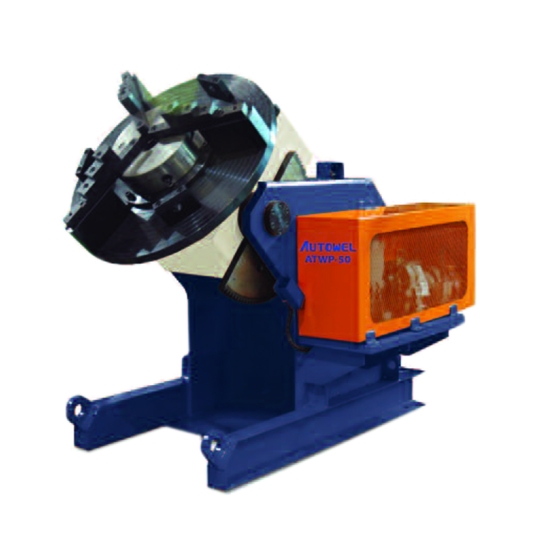

MODEL: ATWP-50
Features
1. It can be used for various welding purposes and its sensitive handling can increase productivity and also prevent msculoskeletal disorders of workers.
2.It has been produced after extensive reserach with onsite data and considering its convenienc above all.
3. There are two tpes availble chuck type and type respectively.
| Model | ATWP-50 |
| Load Capacity | 5 Ton |
| Table Diameter | Ø1,400mm |
| Rotation Speed | 0.05-0.5rpm |
| Tilting Angle | 0-1350 |
| Tilting Speed | 1350/60sec |
| Power Source | 3P 380V (220/415/440)/50/60Hz |
| Control System | Main Elec Panel, Pendant S/W, Speed Control S/W |
| Option | Clamping Chuck, Welding Torch Holder |
