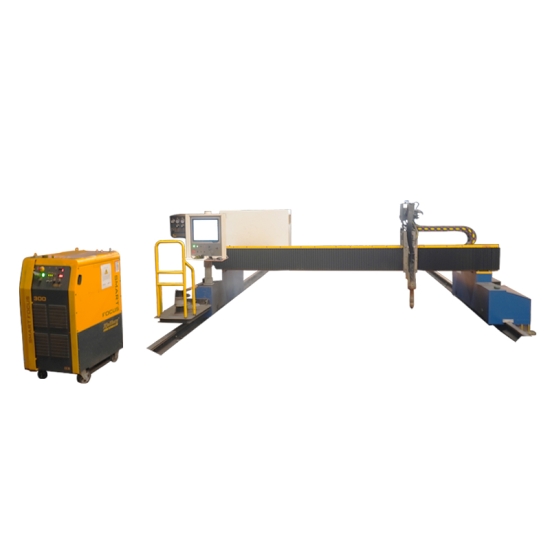

Portable CNC Flame Cutting Machine
| Technical parameter | |
|---|---|
| Model | AT-4080 |
| Effective cutting width | 3000mm(Can be widened) |
| Effective cutting length | 6000mm(Can be lengthened) |
| Controller | Germany Eckelman |
| Screen | 17〃 touch screen |
| Electrical parts | Inovance PLC |
| regulated power supply | Taiwan HSIN DA |
| Cutting torch | JXZ/F one plasma, one flame |
| Flame torch | Longteng |
| Lifter motor | Panasonic servo motor 1 set |
| X axis motor | Panasonic servo motor 3 sets |
| X axis reducer | Japanese Shimpo planet reducer 3sets |
| Transverse mechanical drive | Precision rack and rack and Taiwan HIWIN linear guide |
| Lifting method of flame torch | Electric lift |
| Range of plasma cutting materials | Carbon steel,Stainless steel |
| Plasma perforation cutting thickness | Carbon steel≤40mm |
| Lifting distance of plasma torch | ≤300mm |
| Lifting method of plasma torch | Automatic arc voltage lift |
| Torch lift verticality tolerance | ±0.5mm |
| Overall accuracy of the whole machine | Scratch detection |
| Side length (four sides) | 1000*1000mm |
| Scribing speed | 500-800mm/min |
| Intersection offset tolerance | ±0.5mm |
| Straightness tolerance | ±0.2mm |
| Roundness tolerance | ±0.5mm |
| Diagonal tolerance | ±0.5mm |
| Set speed error | ±5% |
| Mass cutting slope | ISO 9013 standard range 3 |
| Quality cutting roughness | Rz(μm)=70+1.2a |
