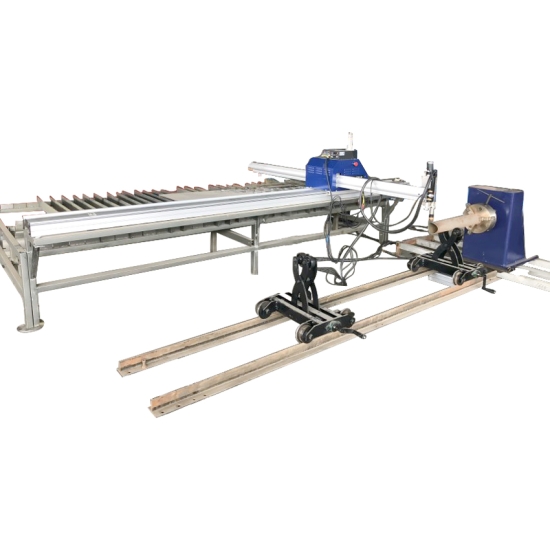

Portable CNC Pipe and Plate Plasma Cutting Machine
Portable CNC Pipe And Plate Plasma Cutting Machine
Portable cnc pipe and plate plasma cutting machine, which realize both CNC cutting and pipe cutting purposes. Software Control System can control plate cutting and intersection cutting with whole set of CNC cutting system. It enjoys the features of convenient installation, easy handle, working stability and elegant appearance.
Feature
1. 1530T 1560T 1860T can be customized, according to require.
2. plate cutting and pipe cutting double use, two model (plasma cutting and flame cutting ) can be choosed.
3. F2100BX professional pipe cutting system, support 19 languages.
| 1 | Model | AT-1530T |
| 2 | Power source and machine voltage | Power source: AC 380±10%VAC 50/60Hz Machine : AC 220±10%VAC 50/60Hz |
| 3 | Cutting mode : Flame and plasma | O2/C3H8 or C2H2 Plasma cutting |
| 4 | Effective cutting range(mm) | 1500*3000mm for plate cutting, 3m pipe |
| 5 | Length of pipe | 3000mm, |
| 6 | The ovality of tubes | Less than 2% |
| 7 | Max. Weight of metal tubes | Less than 300kg |
| 8 | Cutting thickness(Plasma) | According to plasma power source |
| 9 | Size of chuck | 250type chuck with three claws; pipes diameter 25mm to 300mm; also could customize bigger diameter; |
| 10 | Motor of chuck | 400W servo motor |
| 11 | Cutting system | Shanghai Fangling control system F2100BX |
| 12 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates, other metal |
