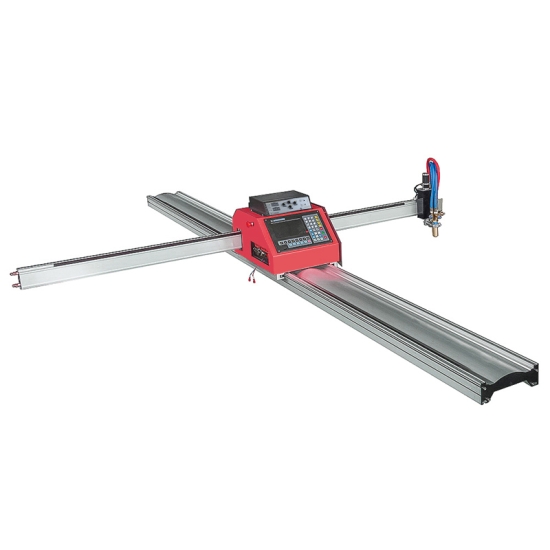

Portable CNC Plasma And Flame Cutting Machine
This Portable cnc plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Feature
1. Effective Cutting length:2000-6000mm can be customized according to user requirements
2.Cutting graphics:programmable cutting line and arc constitute any plane shape parts
3. Language:Support 19 languages




Technical Specification
Model AT-1530
Effective cutting range(mm) 500×3000mm
Cutting speed (mm/min) 50-4000(max. 4000)
Input power source 380v±10% VAC,50/60HZ,three phase
Input Machine body 220V±10%V AC, 50/60HZ, Single phase
Flame Cutting thickness (mm) 6-80 (Oxygen + acetylene or propane)
Plasma cutting thickness(mm) 0.5-30mm (According to your plasma power source)
Torch height controller F1621
Flame cutting gas Oxygen+ propane or acetylene
Plasma cutting gas compressed air
Cutting torch One piece flame cutting torch and one plasma cutting torch with plasma power source
CNC controller system F2100B
Motor Leadshine Stepper motor and drive
Operation precision ±0.2mm
Guide length ×guide width ×guide thickness (mm) 500×273×60
Nesting software StarCam
Gas pressure (Mpa) 0.5
Cutting tool Conversion Kit Oxygen(flame) and plasma cutting machine spare parts can change easily.
